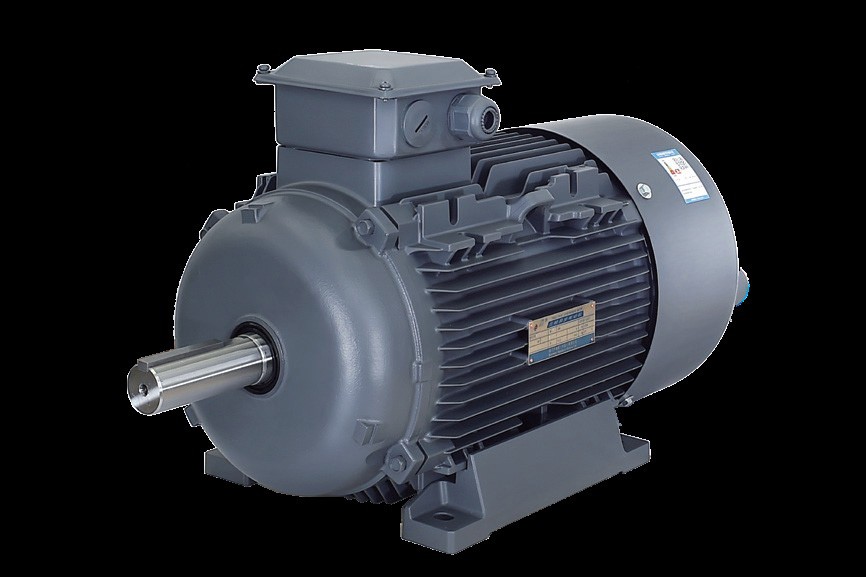

1TL0303 series motor is a newly designed high-efficiency low-voltage three-phase asynchronous motor with cast aluminum casing, efficiency grade ie3 and China energy efficiency grade 2. It is suitable for continuous working (S1) operation. 1TL0 series motor has the characteristics of high efficiency, novel structure, beautiful appearance, low noise, low vibration and high insulation grade. It can be used in many industrial applications such as fans, pumps, compressors, textile machinery and so on.
Rated power: 0.55 ~ 18.5 kw
Frame size No.: 80 ~ 160
Voltage and frequency: support multiple voltages and frequencies
Cooling mode: Standard ic411, ic416 optional
Oiling device: permanently lubricated as standard
Protection grade: IP55
Insulation class: F
Ambient temperature: - 15 ~ 40 º C
Altitude: no more than 1000 m
