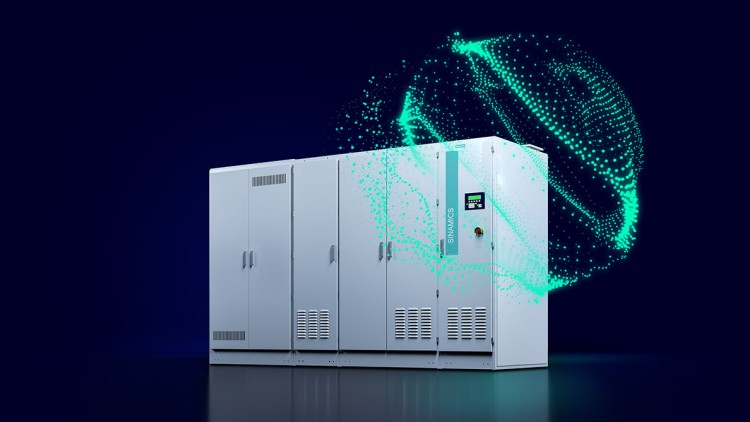

SINAMICS GM150 is a universal and simple drive converter for single-motor applications with variable and constant torque characteristics in a compact and efficient design, but without regenerative feedback. The SINAMICS GM150 (IGBT / IGCT) variable speed drive offers simplicity due to the use of standardized engineering tools like Drive Technology Configurator for system integration and STARTER for fast and user-friendly commissioning. SINAMICS GM150 distinguishes itself as competitive, rugged and service friendly.
Features at a glance
1- Easy to maintain and operate safely and reliably
2- Optimized footprint and design
3- Common housing / system for IGBT and IGCT cooling principles
4- Transformer flexibility
Technical data overview
|
Technology |
Cooling |
Rated output voltage |
Max. type rating |
|
IGBT |
Air |
3 AC 2.3 kV |
1 to 3.2 MVA |
|
IGBT |
Water |
3 AC 2.3 kV |
2 to 4 MVA |
|
IGCT |
Water |
3 AC 3.3 kV |
10 to 21 MVA |
|
IGCT Tandem configuration |
Water |
3 AC 3.3 kV |
20 to 24 MVA |
