Features
Can be used even in narrow construction space
High range of transmission ratios (plug-on pinion)
Hollow shaft on both sides possible
Very energy efficient (efficiencies of 98 % per stage)
Mechanical construction
Stages: 2 or 3
Mounting types: foot-mounted or flange-mounted designs, housing flange, design with torque arm
Shaft designs: solid shaft, hollow shaft, hollow shaft with splined shaft, hollow shaft with shrink disk, SIMOLOC assembly system
Typical applications
Agitator drives
Carriage drives
Shelf access equipment
Vertical conveyor
Technical data

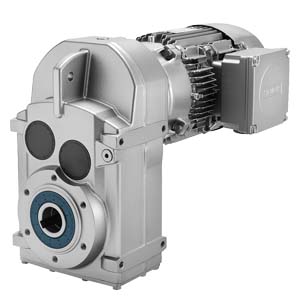

SIMOGEAR parallel shaft geared motors
|
Parallel shaft geared motors |
||
|---|---|---|
|
Gear unit type |
FZ.29 … FZ.189 (2-stage) |
|
|
Gear unit sizes |
11 |
|
|
Torque range |
Nm |
150 … 19 000 |
|
Range of transmission ratios |
4 ... 48 (2-stage) |
|
|
Motor power range |
kW |
55 |
