SIRIUS 3RW30 soft starter
The SIRIUS 3RW30 Basic Performance soft starters are suitable for soft starting of three-phase asynchronous motors.
Thanks to 2-phase control, not only is the current kept at minimum values in all three phases throughout the entire starting time, but disturbing direct current components are also eliminated. This not only enables the 2-phase starting of motors up to 55 kW (at 400 V) but also avoids the current and torque peaks which occur e.g. with star-delta (wye-delta) starters.

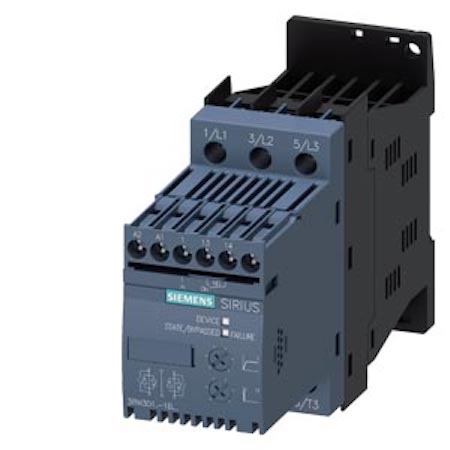

SIRIUS 3RW30 Basic Performance soft starters with accessories
|
|
|
|
|
|
|
3RW301. |
3RW302. |
3RW303. |
3RW304. |
3RW3003-2CB54 |
|
Product characteristics/function |
Performance features/benefits |
|
Small and compact design |
Space-saving, clearly arranged control panel layout |
|
Parameterization using potentiometers |
Simple and fast commissioning |
|
Integrated in the SIRIUS modular system |
Link modules to motor starter protectors |
|
Hybrid switching devices and 2-phase motor control |
Minimum power loss and optimized motor control by avoiding DC components |
